SPE-01

Single-Channel Automated SPE System

  • food
  • biological
  • soil
  • *water
Get the brochure Watch the video Ask for quote

SPE-01 is an economic and flexible option for automating your solid phase extraction process. This sample preparation system can clean up to 12 samples sequentially and collect up to 4 fractions per sample. Different methods can be applied to each sample through its user-friendly touch interface which is useful for method development.

Videos
Specifications
Part numbers
Documents

Product Introvideo thumbnail for SPE-01 offline automated SPE

Sample capacity12 samples sequential
Sample volume0.5-50 mL (MOD-005 for 2000 mL option_
SPE column sizes1/3/6/12 mL
Solvent capacity5 solvents
Fractions4 for each sample
Waste channelwaste collected in 12mL tubes (MOD-005 provides waste outlet for larger volumes)
Flow rate0.5 to 85 mL/min
System control4.3" resistive touch screen
Dimensions34 cm x 34 cm x 45 cm
Weight12 kg

See brochure for more details

SPE-01 SPE-01 system
MOD-005 Volume extension for up to 2000 mL samples

See brochure for more details

SPE-01 Brochure
Image of SPE-01 - Automated offline Solid Phase Extraction

Special Features

SAMPLE CONTAINER COMPATIBLITY

The SPE-01 sample rack can accomodate 12mL to 20mL sample tubes for small volume samples or tubing adapters for large volume samples

SPE COLUMN COMPATIBLITY

The SPE-01 uses an innovative adapter to accomodate 1, 3, 6 and 12mL SPE columns. There is no need for extra adapters

SAMPLE CONTAINER RINSING

The SPE-01 can rinse sample containers using 1 or 2 solvents and then add the rinsate back to the SPE columns to improve recovery

SOLVENT/SAMPLE MIXING

Two solvents can be mixed at specified ratios to enable gradient elution. Samples can also be mixed with internal standards or solvents

4 FRACTIONS PER SAMPLE

Up to 4 fractions can be collected for each sample, making it very convenient for method development or when extracting multiple compounds.

LARGE VOLUME MODE

The SPE-01 can collect up to 12mL of waste per sample. For larger volume samples, request MOD-005 which adds a waste outlet tube that can be fed into any container.

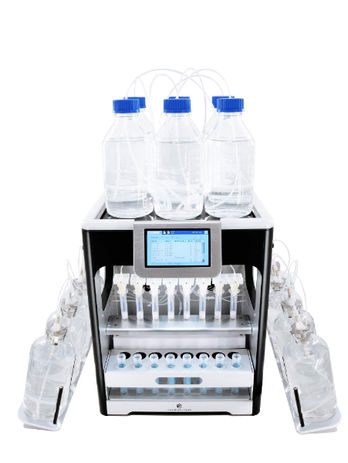

SPE-03

8-Channel High Volume Automated SPE System

  • water
  • food
  • soil
  • biological
Get the brochure Watch the video Ask for quote

The SPE-03 is a powerful and efficient sample preparation system capable of processing up to 8 samples at a time. It can be used for large volume water, small volume food, soil and forensics sample clean up. By using our flow path integration technique, the SPE-03 has a very small footprint and can easily fit in any fume hood. Special features include sample bottle rinsing, solvent mixing, separate waste outlets and nitrogen drying of cartridges.

Sample and fraction sizes are highly customizable for SPE-03:

SPE-03 default fraction collection tray for 50mL centrifuge tubes Fraction collection tray with removable adapter for 15mL centrifuge tubes Fraction collection tray with removable adapter for 1.5mL autosampler vials MOD-004 sample bottle rack for 1L GL45 glass bottles MOD-004 sample bottle rack for 250mL polypropylene bottles
SPE-03 default fraction collection tray for 50mL centrifuge tubes
Default fraction collection tray for 50mL centrifuge tubes
Fraction collection tray with removable adapter for 15mL centrifuge tubes
Fraction collection tray with removable adapter for 15mL centrifuge tubes
Fraction collection tray with removable adapter for 1.5mL autosampler vials
Fraction collection tray with removable adapter for 1.5mL autosampler vials
MOD-004 sample bottle rack for 1L GL45 glass bottles
MOD-004 sample bottle rack for 1L glass bottles
MOD-004 sample bottle rack for 250mL polypropylene bottles
MOD-004 sample bottle rack for 250mL polypropylene bottles
Videos
Specifications
Part numbers
Documents

Product Introvideo thumbnail of SPE-03 automated offline SPE system

Automating EPA method 537 + self-cleaning procedurevideo thumbnail of SPE-03 performing EPA Method 537 sample preparation automation

Sample capacity8 samples in parallel
Sample volume0.5-4000 mL
SPE column sizes1/3/6/12 mL
Solvent capacity6 solvents
Fractions2 for each sample
Waste channelseparate outlets for sample and solvent wastes
Flow rate0.5 to 60 mL/min
System control4.3" resistive touch screen
Dimensions34 cm x 34 cm x 45 cm
Weight13 kg

See brochure for more details

SPE-03 SPE-03 system
MOD-003 Disk kit for 47mm disks
MOD-004 Sample bottle rack for up to 4 1L bottles

See brochure for more details

SPE-03 Brochure PAH extraction using SPE-03 SPE-03 vs manual SPE
Image of SPE-03 - Automated offline Solid Phase Extraction

Special Features

SAMPLE CONTAINER COMPATIBLITY

The SPE-03 sample rack can accomodate 12mL to 20mL sample tubes for small volume samples or tubing adapters for large volume samples

SAMPLE/SOLVENT WASTE OUTLETS

Sample and solvent wastes exit through their respective tubing. This ensures that organic and aqueous wastes can be disposed of separately

NITROGEN DRYING

Nitrogen drying of sorbent material can be programmed into the methods. This step can be time-controlled or until the user wishes to resume. The flow meter can be adjusted up to 2.5L/min

SPE COLUMN COMPATIBLITY

The SPE-03 uses an innovative adapter to accomodate 1, 3, 6 and 12mL SPE columns. There is no need for extra adapters. Using the MOD-004 sample rack, SPE columns can be connected directly under the sample containers to prevent dirty particles from entering the pumps and valves

SAMPLE CONTAINER RINSING

The SPE-03 can rinse sample containers using 1 or 2 solvents and then add the rinsate back to the SPE columns to improve recovery. Rinsing comes in two modes, one at a low flow rate for small sample containers and one with a high flow rate for rinsing the top and sides of larger sample containers

SOLVENT MIXING

Two solvents can be mixed at specified ratios to enable gradient elution

SPE-04+

40-Sample 4-Channel High Throughput Auto SPE

  • food
  • biological
  • *water
Get the brochure Watch the video Ask for quote

The SPE-04+ is a highly efficient system for the analysis of drugs in biological samples and pesticide residues in food. Samples are processed in groups of 4, making it 4 times as fast as single channel systems. Up to 40 samples can be loaded onto the tray. 4 large volume water samples can also be connected to the system, making it suitable for many applications.

Videos
Specifications
Part numbers
Documents

Product Introvideo thumbnail of SPE-04 plus offline automated SPE equipment

Sample capacity40 samples, processing 4 at a time
Sample volume0.5-9 mL using tray, 0.5-2000 mL for external sample containers
SPE column sizes1/3/6/12 mL
Solvent capacity6 solvents
Fractions2 for each sample by default (up to 10)
Waste channelOutlet for sample and solvent waste
Flow rate0.5 to 60 mL/min
System control4.3" resistive touch screen
Dimensions34 cm x 42 cm x 35 cm
Weight14 kg

See brochure for more details

SPE-04P-01 SPE-04+ system

See brochure for more details

SPE-04+ Brochure
Image of SPE-04+ - Automated offline Solid Phase Extraction

Special Features

UP TO 10 FRACTIONS PER SAMPLE

The SPE-04+ has 2 fractions per sample and can be configured to do up to 10 fractions for 8 samples. This is very useful for method development

CALCULATED SAMPLE PLUNGER INCREMENTS

When taking samples, the plungers move down at calculated increments to ensure that only the tips are ever in contact with the samples. A cleaning step can be added after sample loading to clean the plunger tips

NITROGEN DRYING

Nitrogen drying of sorbent material can be programmed into the methods. This step can be time-controlled or until the user wishes to resume. The flow meter can be adjusted up to 2.5L/min

SOLVENT/SAMPLE MIXING

Two solvents can be mixed at specified ratios to enable gradient elution. Samples can also be mixed with internal standards or solvents for sample modification

RT-01

8-Channel Sample Purification System

  • herbs
  • natural products
Ask for quote

The RT-01 is best suited for the purification and isolation of comple components from herbs and other natural products. Fractions are collected in up to 3 96-well plates. This SPE equipment also performs flash LC for higher throughput.

Videos
Specifications
Part numbers
Documents

video currently unavailable

Sample capacity8 samples in parallel
Sample volume0.5-2000 mL
SPE column sizes1/3/6/12 mL
Solvent capacity6 solvents
Fractionsup to 3 96-well plates
Waste channelOutlet for sample and solvent waste
Flow rate0.5 to 60 mL/min
System control4.3" resistive touch screen
Dimensions34 cm x 34 cm x 45 cm
Weight12.5 kg
RT-01 RT-01 system
Image of RT-01 - Automated offline Solid Phase Extraction

Special Features

SPE & FLASH LC

The RT-01 can perform both automated SPE and Flash LC, making it a powerful two-in-one-system.

SPE COLUMN COMPATIBLITY

The RT-01 uses an innovative adapter to accomodate 1, 3, 6 and 12mL SPE columns. There is no need for extra adapters.

Image of SPE-01 - Automated offline Solid Phase Extraction

SPE-01

automated SPE for 0.5-50 mL sample volume

Automated Solid Phase Extraction of pesticide and drug residue in food and environmental samples.

SPE-01 brochureNew SPE-01 Video

Specifications

Sample Capacity :12 per batch
Sample Volume :0.5-50 mL (Contact us for 2000mL option)
Dimensions :34 cm x 34 cm x 45 cm
Weight :11.5 kg
Applications :pesticide residues, forensic drugs and soil pollutants
Special Features :online mixing for gradient elution, sample modification & standard addition
simple structure, easy operation, economic

Part Numbers

SPE-01
MOD-005 Volume extension for up to 2000mL samples

Image of SPE-03 - Automated offline Solid Phase Extraction

SPE-03

8-channel high volume solid phase extraction system

For extraction automation of large volume water samples and high throughput cleanup of any samples by column chromatography and SPE.

SPE-03 brochureNew SPE-03 VideoNew EPA Method 537 VideoNew

Specifications

Sample Capacity :8 samples, parallel mode
Sample Volume :0.5-4000 mL
Dimensions :34 cm x 34 cm x 45 cm
Weight :13 kg
Applications :high volume water/food/biological samples
Special Features :works with almost any sample,
nitrogen drying of cartridge
solvent mixing

Part Numbers

SPE-03
MOD-003 Disk kit for 47mm disks
MOD-004 Sample bottle rack for up to 4 1L bottles

Image of SPE-04 Plus - Automated offline Solid Phase Extraction

SPE-04+

40-sample, 4-channel high throughput auto SPE

For analysis of drugs in biological samples and pesticide residues in food. May also be used for large volume water samples. Four-channel design for high throughput.

SPE-04+ brochure SPE-04+ Video

Specifications

Sample Capacity :40 per batch
Sample Volume :0.5-9 mL, 40 samples (small volume mode)
0.5-2000 mL, 4 samples (large volume mode)
Dimensions :34 cm x 34 cm x 45 cm
Weight :12.5 kg
Applications :forensic drugs and biological samples, pesticide residues in food and large water samples
Special Features :Blending of 2 solvents for gradient elution,
Keeps track of sample levels,
Up to 10 fractions per sample,
Built-in touch screen control

Part Numbers

SPE-04P-01

Image of RT-01 - Automated offline Solid Phase Extraction

RT-01

8-channel sample purification system

For purification and isolation of complex components from herbs and other natural products. Complements flash LC for higher throughput.

Specifications

Sample Capacity :8 per batch
parallel only
Sample Volume :0.5-2000 mL
Dimensions :34 cm x 34 cm x 45 cm
Weight :12.5 kg
Applications :Purification and isolation of complex components
from herbs and other plant samples
Special Features :performs both automated SPE and Flash LC,
collects fraction using well plates,
touch interface

Part Numbers

RT-01

icon indicating summary of PromoChrom's automated offline SPE features

Common Features
